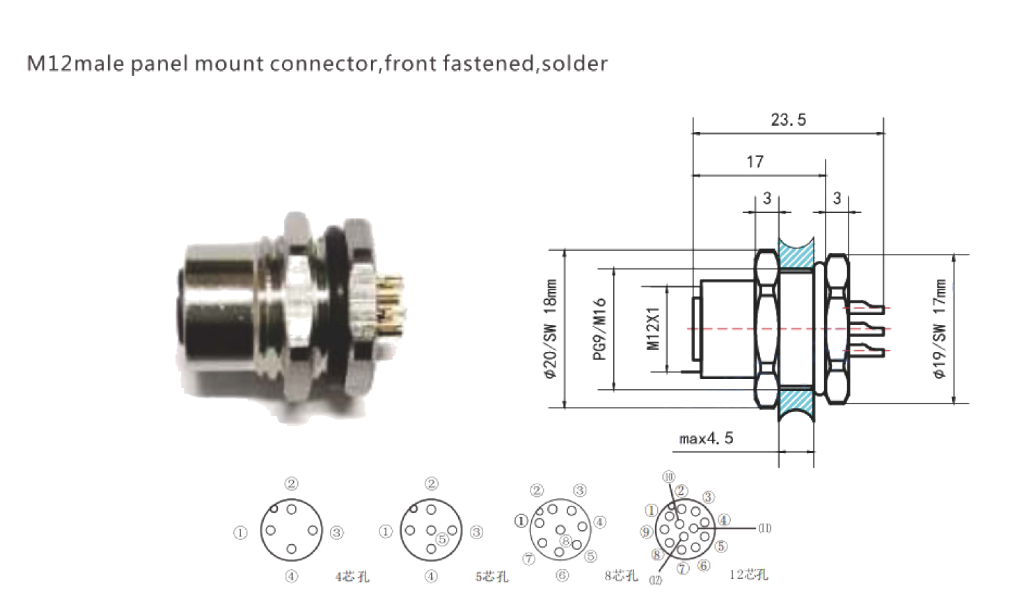

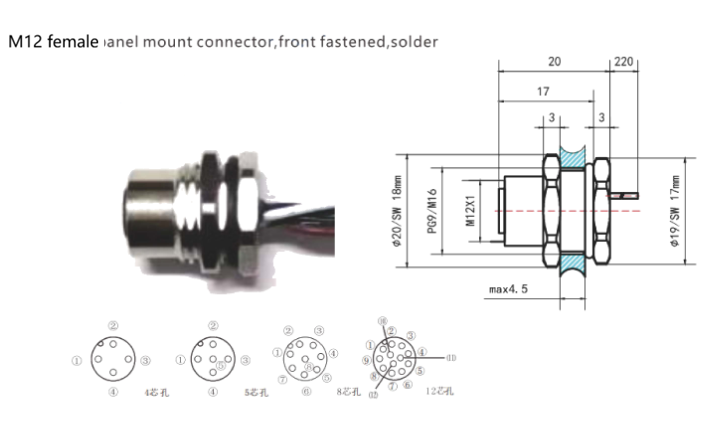

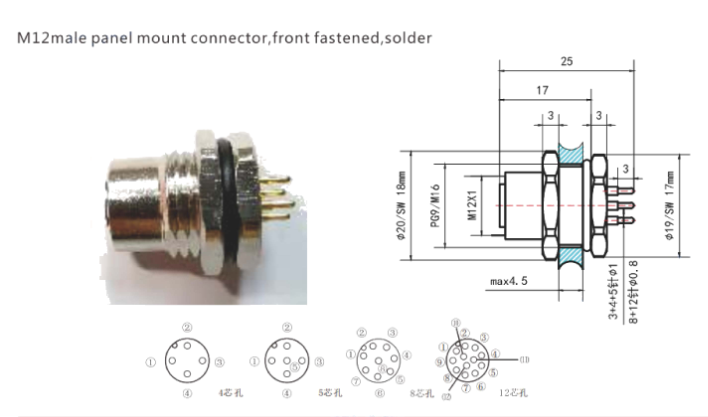

Front-mount and rear-mount M12 panel connectors for enclosures, control cabinets, machines, and industrial equipment.
| Connector Series | M12 |
|---|---|
| Product Type | Panel Mount Connector |
| Gender | Male, Female |
| Orientation | Straight |
| Pin Count | 3, 4, 5, 8, 12 |
| Coding | A-Code, B-Code, C-Code, D-Code, Custom |
| Mounting Type | Front Mount, Rear Mount |
| Termination | PCB, Solder Cup, Wire Leads |
| Housing Material | Metal |
| Protection Degree | IP67, Custom |
| Cable Length | Customized Leads |
| Application | Panel, Enclosure, Control Cabinet |
Yes. We support drawing-based manufacturing for custom cable assemblies, connectors, and wire harness projects.
Yes. If complete drawings are unavailable, we can review sample cables or connectors and provide a suitable manufacturing solution.
Yes. Cable length, pin assignment, connector combination, shielding, jacket material, and wiring can be customized.
Please send drawings, sample photos, connector models, pinout, cable specification, quantity, and application environment.
Can you provide samples before mass production?
Do you support OEM or private label projects?
Yes. We can perform continuity testing, wiring checks, appearance inspection, and other tests according to the product requirements.
Lead time depends on the product structure, material availability, and order quantity. Standard samples usually take 1–3 weeks after technical details are confirmed.
M12 panel mount connectors are designed for fixed installation on equipment panels, enclosures, junction boxes, and control cabinets.
Key Features

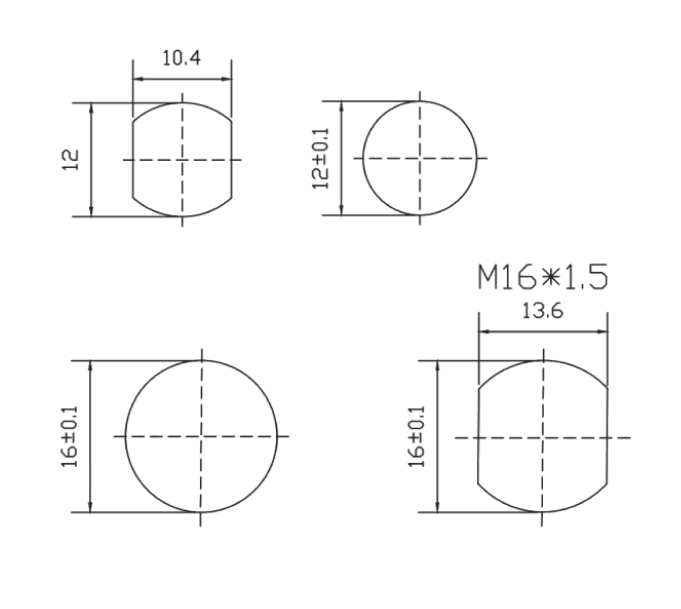

Mounting thread, panel thickness, pin count, coding, termination, wire lead length, and pin assignment can be customized.
Send us your drawing, sample photo, connector model, pin assignment, cable specification, or application requirements. LinkCable Technology will review the project and provide a suitable solution.
